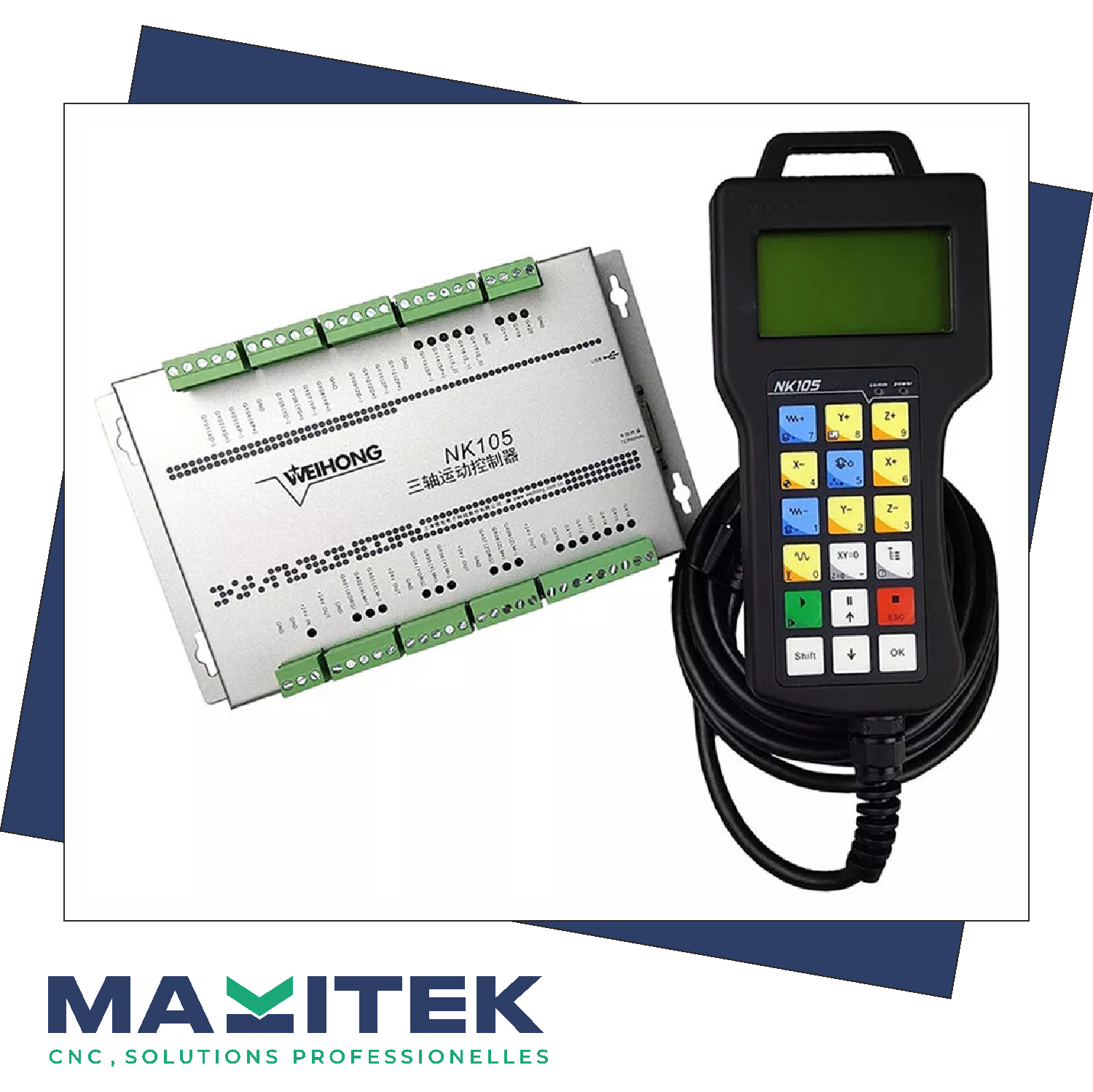

Model: NK105 G2

Fabricant : WEIHONG

Nombre d’axes pris en charge : 3 axes

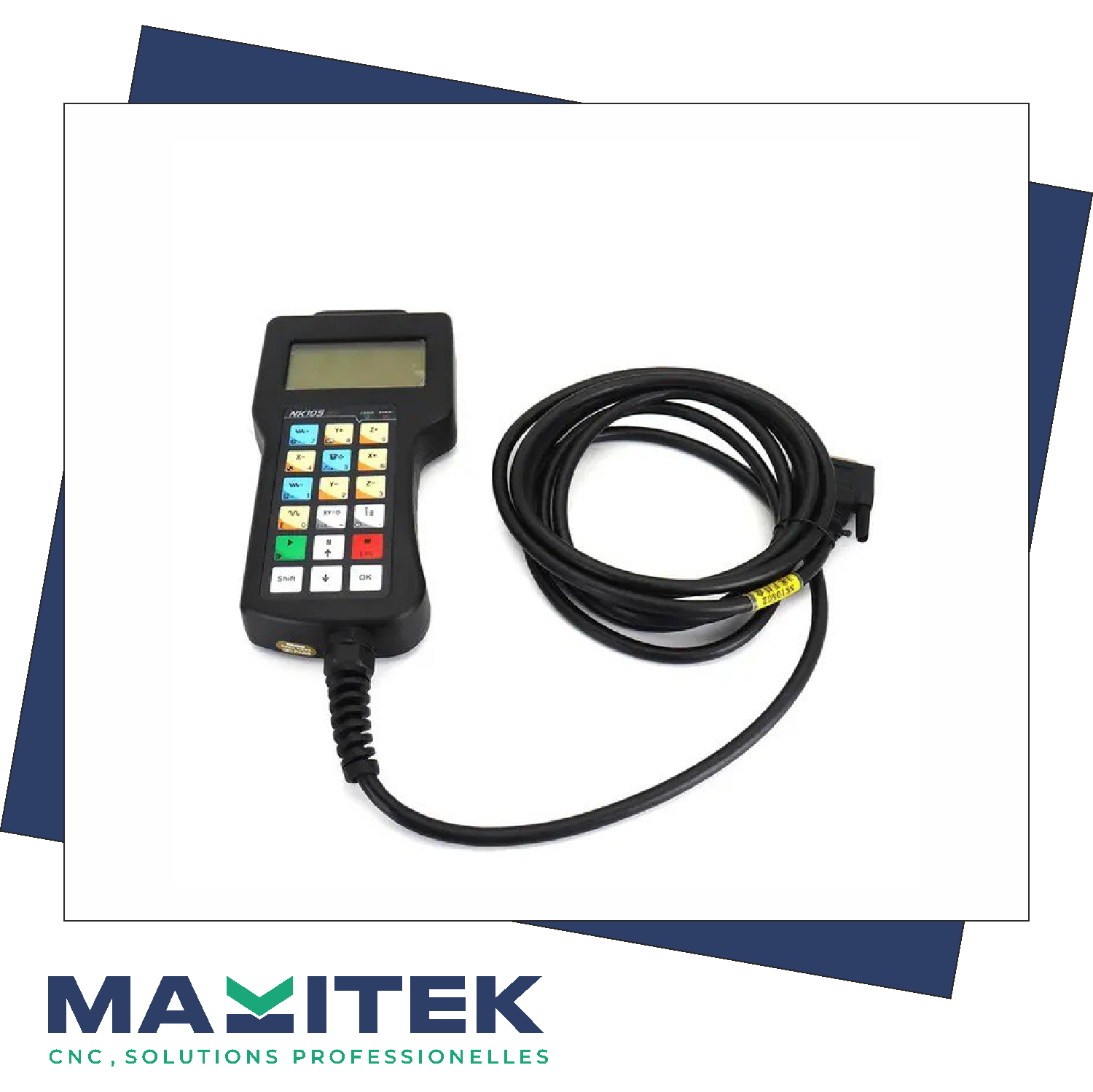

Type : DSP handle control system

Application : CNC engraving and cutting machines

Basic Configuration of NK105 G2 System:
Number of Axes Supported: 3 axes
CPU: ARM11
Memory: 128M
Flash: 256M
Monitor: 128 × 64 graphic LCD module

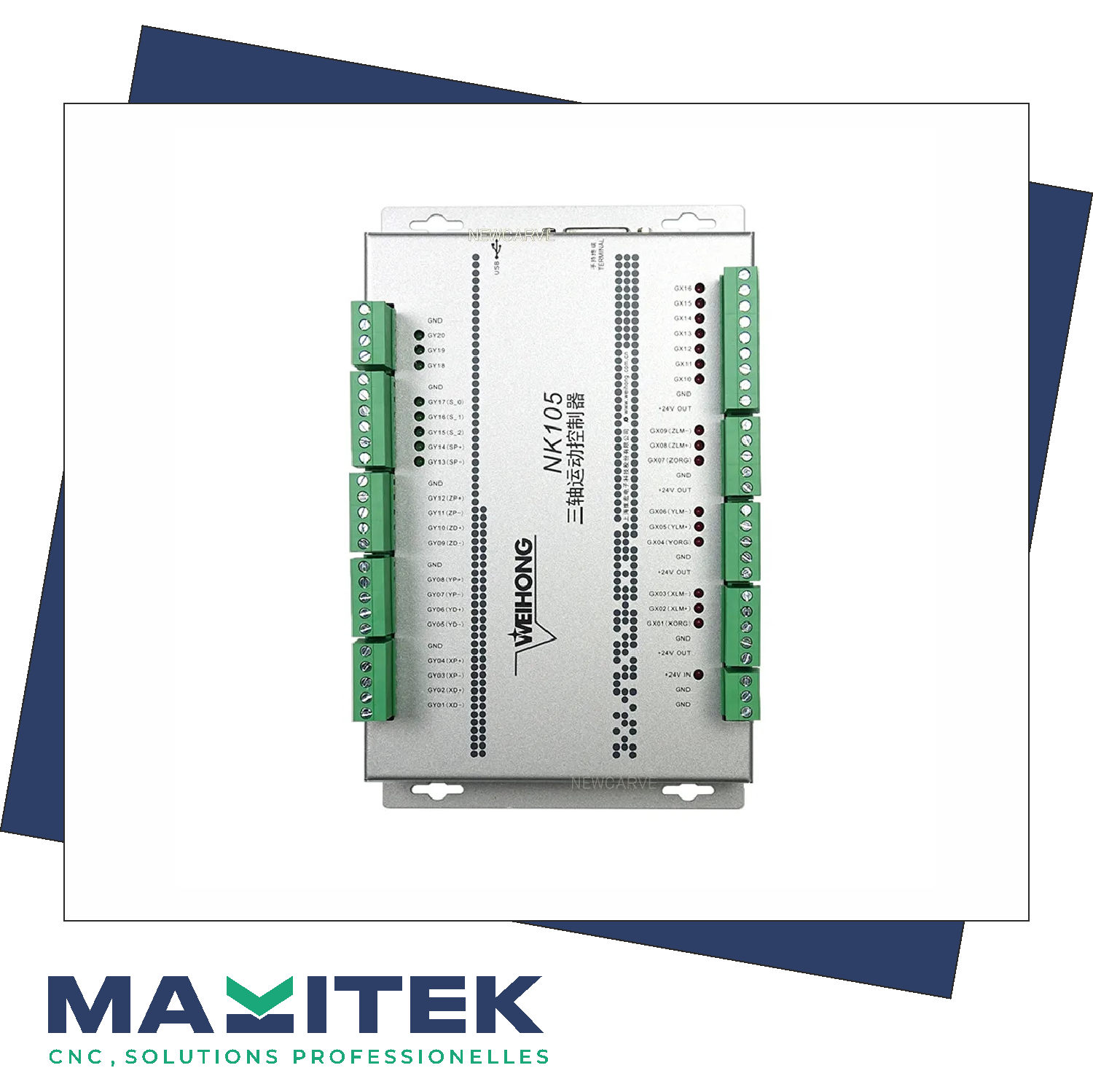

I/Os: Standard

Performance Indicator:
1) The product stands EMI/Electrical fast transient immunity/Surge immunity tests and conforms to the fourth grade protection standards of GB/T 17626.5-2008.
2) Resistance to vibration conforms to the GB/T 2423.10-2008 Standards.
3) The product stands rigid temperature tests and conforms to the industrial standards of GB/T 2423.102-2008.
Spindle speed: Multiple Gears, 8 gears of spindle speed
Tool Measurement Mode: Auto measurement, Manual measurement
Tool Measurement Type: Fixed calibration, Mobile calibration,
Compensation: Blacklash compensation
Toolpath Program Supported: *.g/*.nc/*.ug/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt
Operations:
WCS Setting: Supporting WCS G54-G59
Processing Technology: Array function, Cycle machining
Convenitent Operations: Handwheel guide, Breakpoint resume, Tool selection
High-speed High-precision Optimization (Interpolation Algorithms): T-type and S-type algorithms
Software Language: Chinese, English, Polish, Vietnamese
Reliability & Safety (CNC Software Alarm):
Alarms of program error, operation error, over-travel error, PLC error and IO communication error
